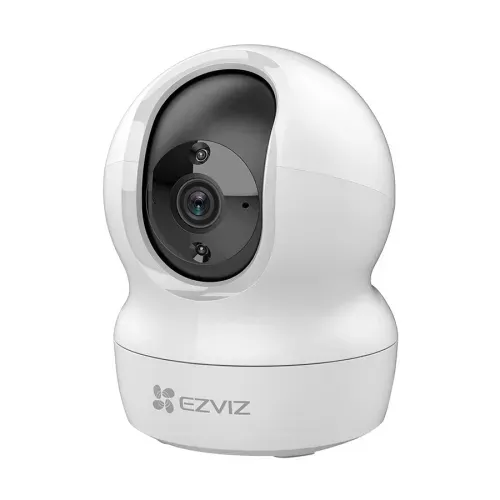

EZVIZ CP1 Lite 2MP Pan & Tilt WiFi Dome IP Camera

General Information
Image Sensor
1/3″ Progressive Scan CMOS

Effective Pixels
2MP

Max. Resolution
1920 × 1080

Frame Rate
Max: 25fps; Self-Adaptive during network transmission

Lens
4mm @ F1.6

Field of View
90° (Diagonal), 80° (Horizontal), 43° (Vertical)

Video Compression
H.264 / H.265

Bit Rate
Adaptive bit rate

Audio Input / Output
Two-way Audio

Smart Alarm
Motion Detection, Human Shape Detection, Loud Noise

Storage Type
Micro SD Card Slot (Max. 512GB)

Mobile App
EZVIZ App

Network & Connectivity
Wireless Network
WiFi

Power
Power Supply
DC 5V/1A

Power Consumption
Max. 5W

Physical Specification
Color
White

Dimension
88mm × 88.2mm × 119mm (3.46” × 3.47” × 4.69”)
Packaging: 103mm × 103mm × 168mm (4.06” × 4.06” × 6.61”)

Weight
222 g (0.49 lb)

Warranty Information
Warranty
01 Year Warranty

Description
The EZVIZ CP1 Lite 2MP Pan & Tilt WiFi Dome IP Camera is a smart indoor security solution designed for modern homes and offices. It features a 2.0MP CMOS sensor with a 4mm lens, delivering clear Full HD 1080p video. Its pan and tilt design offers flexible coverage with an 85° diagonal viewing angle, ensuring wide room visibility.

The EZVIZ CP1 Lite Portable WiFi camera supports IR night vision in black-and-white mode, making monitoring effective in low-light conditions. It includes motion detection and a smart alarm system to help users stay informed in real time. With built-in two-way audio, users can talk and listen through the camera using the integrated mic and speaker.

The CP1 Lite supports Wi-Fi connectivity and secure pairing via IEEE802.11b/g/n protocols, ensuring strong wireless security with WPA/WPA2 encryption. It stores footage locally through a MicroSD card slot (up to 256GB) and uses EZVIZ cloud proprietary protocol for seamless remote access and app integration.

Powered via Micro USB (DC 5V/1A) with max 5W consumption, it is energy-efficient and reliable. The camera operates in temperatures between -10°C to 45°C with humidity up to 95% non-condensing. Its sleek black & white design blends into indoor environments, making it suitable for both home and small business security.

The EZVIZ CP1 Lite delivers powerful surveillance with smart features, real-time communication, and secure cloud access — all in one compact, easy-to-use device.
