Description

General Information
Image Sensor
F1.6 @ 1/3″ Progressive Scan CMOS

Effective Pixels
5MP

Max. Resolution
1920 × 1080

Frame Rate
Max: 25fps; Self-Adaptive during network transmission

Lens
4mm

IR Distance
Max. 10 meters (32.81 ft)

Field of View
90° (Diagonal), 80° (Horizontal), 43° (Vertical)

Video Compression
H.264 / H.265

DNR
3D DNR

WDR
Digital WDR

Smart Alarm
Motion Detection, Human Detection, Human Tracking, Noise Detection, Auto Patrol

Button
Reset Button

Storage Type
Micro SD Card Slot (Max. 512GB)

Certifications
CE / UL / WEEE / REACH / RoHS / UKCA

Network & Connectivity
Wireless Network
IEEE802.11b/g/n
2.4 GHz ~ 2.4835 GHz
Channel Bandwidth Supports 20MHz

Wired Network
RJ45 × 1 (10M / 100M Self-adaptive Ethernet Port)

Power
Power Ports
Type-C

Power Supply
DC 5V / 1A

Power Consumption
Max. 5W

Physical Specification
Color
White

Dimension
88mm × 88.2mm × 119mm (3.46” × 3.47” × 4.69”)

Weight
218g (0.48lb)

Operating Temperature
-10°C to 45°C (14°F to 113°F), Humidity 95% or less (non-condensing)

Warranty Information
Warranty
01 Year Warranty

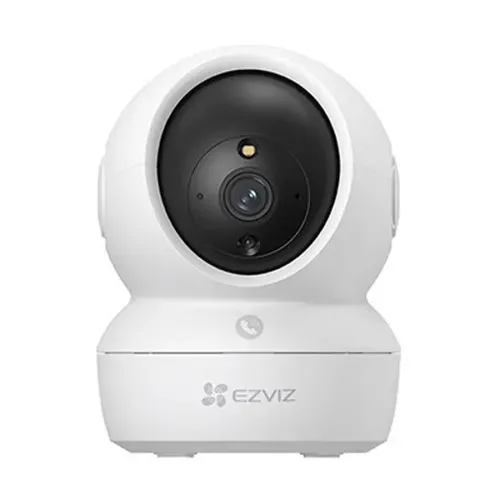

Description
The EZVIZ CS-H6C Pro 5MP Pan & Tilt Portable WiFi Camera is a versatile security solution designed for both residential and commercial use. It features a 1/3″ Progressive Scan CMOS sensor with an F1.6 aperture lens, delivering sharp and clear images. The 4mm lens offers a wide coverage area with a 90° diagonal, 80° horizontal, and 43° vertical field of view, making it ideal for indoor monitoring.

Equipped with an IR-cut filter and auto-switching, the camera ensures excellent day and night performance. 3D DNR (Digital Noise Reduction) and Digital WDR enhance image clarity across varying lighting conditions. Supporting both H.264 and H.265 compression formats, it efficiently manages storage and bandwidth with adaptive bit rate technology. It records Full HD video at 1920 × 1080 resolution with up to 25fps for smooth playback.

The smart alarm system includes motion detection, human detection, human tracking, noise detection, and auto patrol for comprehensive surveillance. Wi-Fi setup is simplified through AP pairing with the EZVIZ Cloud Proprietary Protocol, ensuring secure and seamless connectivity.

For storage, the EZVIZ CS-H6C Pro supports microSD cards up to 512GB. It features a Type-C power interface and an RJ45 Ethernet port (10M/100M self-adaptive) for wired connections. Compact and reliable, this camera delivers intelligent security in a user-friendly design.
