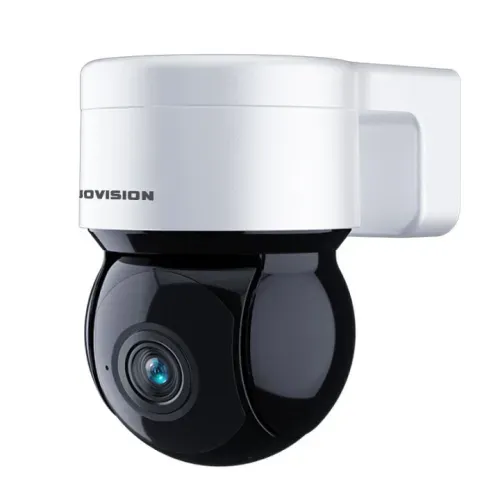

Jovision JVS-H320C 3MP Pan/Tilt Wi-Fi Camera

General Information
Image Sensor
1/2.9″ CMOS Sensor

Effective Pixels
3.0MP

Max. Resolution
2304 × 1296

Frame Rate
25fps

Lens
3.6mm

Field of View
Horizontal: 78.6° , Vertical: 42° , Diagonal: 92.4°

Min. Illumination
0.01 Lux (Light ON)

Video Compression
H.264 / H.265 (Default)

Audio Input / Output
Built-in Microphone & Speaker

DNR
Digital 3D Noise Reduction

WDR
DWDR Support

Smart Alarm
Email Alarm, Client Alarm

Button
Reset Button

Storage Type
Supports SD Card (Up to 256GB), Cloud Storage

Mobile App
Supports iOS / Android

Others
Supports up to 13 Users
IP66 Waterproof

Network & Connectivity
Wireless Network
Yes

Power
Power Supply
DC 12V / 2A

Power Consumption
< 6W (Daytime) ; < 10W (Nighttime)

Physical Specification
Color
Black and White

Dimension
135 × 135 × 95 mm

Weight
450g

Operating Temperature
-20°C ~ 60°C

Operating Humidity
10% ~ 90% RH

Warranty Information
Warranty
01 Year Warranty

Description
The Jovision JVS-H320C 3MP Pan/Tilt Wi-Fi Camera is a high-performance surveillance solution designed for both home and commercial security. Featuring a 1/2.9″ CMOS sensor and 3.0MP effective pixels, it delivers crisp, clear video at a maximum resolution of 2304 × 1296. Its 3.6mm lens provides wide coverage with a 78.6° horizontal, 42° vertical, and 92.4° diagonal field of view.

With powerful infrared night vision up to 40m, the camera ensures reliable monitoring even in complete darkness. Dual-stream support allows flexible bandwidth management with bitrates ranging from 128Kbps to 4096Kbps (main stream) and 68Kbps to 1024Kbps (sub stream).

Built for outdoor durability, the camera carries an IP66 waterproof rating and operates efficiently with DC12V/2A power, consuming less than 6W during the day and 10W at night. Compact and lightweight at 135 × 135 × 95mm and 450g, it offers smooth pan/tilt control and remote management via wireless connectivity.

Supporting local SD card storage (up to 256GB), cloud storage, and multi-user access (up to 13 users), the Jovision JVS-H320C provides a versatile and reliable security solution. Combining advanced optics, rugged design, and smart features, it ensures round-the-clock protection for homes, offices, and businesses.
