Description

General Information
Image Sensor
1/2.8″ CMOS Sensor

Effective Pixels
3.0 MP

Max. Resolution
2304 × 1296

Frame Rate
25fps

Lens
Focal Length: 4mm

Pan & Tilt
Horizontal: 347° , Vertical: 86° (-35° ~ 51°)

IR Distance
Up to 10m

Field of View
Horizontal: 87° , Vertical: 41° , Diagonal: 93°

Min. Illumination
0 Lux (IR ON)

Bit Rate
Main Stream: 256Kbps ~ 4096Kbps
Sub Stream: 68Kbps ~ 1024Kbps

Storage Type
Micro SD (Up to 256GB)

Network & Connectivity
Wireless Network
IEEE 802.11 b/g/n 2.4GHz

Power
Power Supply
DC 5V / 1.5A

Power Consumption
≤ 5.42W

Others
ONVIF Supported

Physical Specification
Dimension
75.5 × 75.5 × 115.5 mm

Weight
175g

Operating Temperature
-10°C ~ 55°C

Warranty Information
Warranty
1 Year

Description

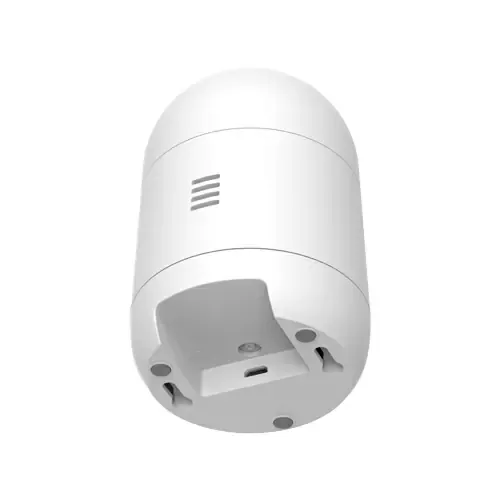

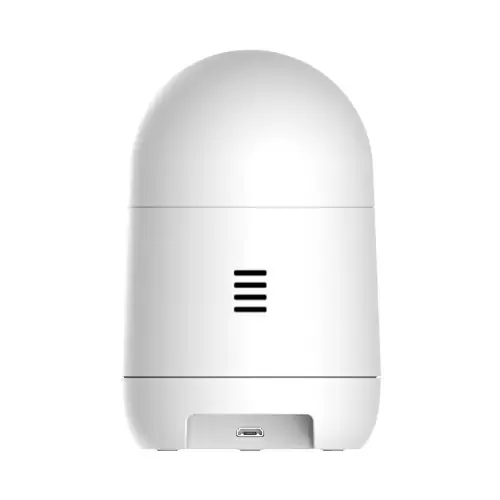

The Jovision JVS-H950E 3MP Wi-Fi Network IP Camera delivers high-definition 3MP resolution for sharp, detailed surveillance footage. It features two-way real-time audio with a built-in microphone and speaker, enabling clear and natural communication. A one-click privacy shielding function ensures user privacy, while simple setup options like QR code, AP Hotspot, and sound wave Wi-Fi configuration provide hassle-free connectivity.

Equipped with advanced smart detection features such as Region Intrusion, Line Crossing, and Humanoid Tracking, the camera enhances monitoring accuracy and security. With Micro SD card support up to 256GB, users can store extensive recordings locally, while ONVIF protocol compatibility ensures seamless integration with diverse platforms and devices.

Compact yet powerful, the Jovision JVS-H950E combines superior image quality, intelligent monitoring, and privacy protection, making it a reliable solution for home and business surveillance.
